Owen Bradley You install a fresh pair of memory sticks, boot up, and Windows reports half of what you paid for. Or the machine posts fine but one module has simply vanished from the system information panel. RAM not detected, or detected at the wrong capacity, is one of the most common post-upgrade complaints in PC building, and it is also one of the most fixable. Bad sticks do exist, but far more often the culprit is a slot that was never fully latched, a firmware setting quietly capping usable memory, or a configuration that the board cannot run at the speed being requested. This guide works through the checks in a deliberate order so you can isolate the cause without buying anything.
Identify the Exact Symptom First
Three different problems all get described as “RAM not detected”, and they have different causes. The first is a system that will not post at all with a given stick installed, usually accompanied by a memory error code on the board’s debug LED or beep speaker. The second is a system that posts and shows the full capacity in BIOS but a smaller number in Windows. The third is a system where BIOS itself only reports one module out of two or four.
If BIOS sees everything and Windows does not, the problem is software and you can skip most of the disassembly below. If BIOS is also short, it is hardware, seating, or firmware. Confirm which case you are in before opening the case, because the fix paths diverge immediately.
What You Need Before Starting
- A Phillips screwdriver for the side panel.
- Your motherboard manual, or the PDF from the maker’s site, since slot population order is board-specific.
- A soft brush or compressed air, plus a clean lint-free cloth and isopropyl alcohol for contact cleaning.
- An anti-static strap, or the habit of touching bare case metal before handling modules.
- A USB stick if you plan to update firmware or run a memory test.
Power the machine down fully, flip the power supply‘s rear switch off, unplug the mains lead, and press the case power button for several seconds to drain standby charge. Memory slots carry live standby voltage on most modern boards even when the system looks off, and removing a module in that state can damage both stick and slot.
Step-by-Step Troubleshooting
- Check the Windows-side limits first. Open the system configuration tool, go to boot options, open advanced settings, and confirm that the maximum memory checkbox is unticked. A box that was ticked once during a troubleshooting session will silently cap the operating system at that value forever. This single setting explains a large share of “wrong size” reports.
- Account for hardware reserved memory. Integrated graphics carve out a slice of system memory, and boards commonly reserve a little more. Seeing slightly less than the sticker figure is normal. Compare the total reported in BIOS against the total in Task Manager to see how much is being reserved, and reduce the integrated graphics frame buffer allocation in firmware if it is unnecessarily large.
- Reseat every module properly. Open the retention clips at both ends of each slot, remove the sticks, then push each one back in with firm, even pressure on both ends until both clips snap upright by themselves. A module that is seated at one end and slightly proud at the other will either not appear or cause instability. Do not rely on pressing only the middle of the stick.
- Follow the correct slot order. Almost every four-slot board wants a pair of modules in slots two and four counting from the processor, not one and two. The manual states this explicitly and getting it wrong can prevent dual-channel operation or stop the second stick appearing at all. If you are unsure, populate the slot furthest from the CPU first.

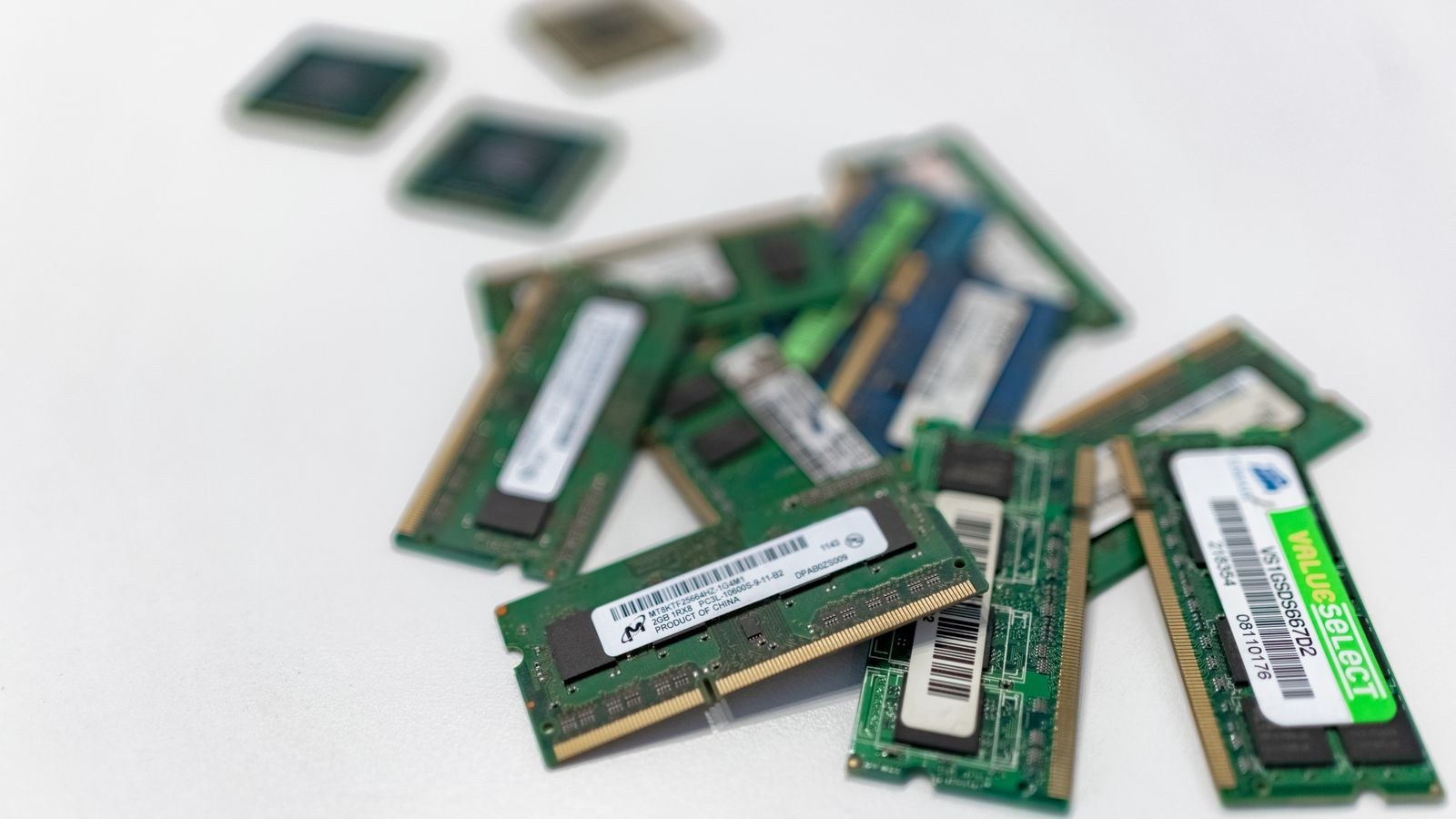

- Test one stick at a time. Install a single module in the primary slot and boot. Repeat for each stick in the same slot. This tells you whether a module is faulty. Then take a known-good stick and move it through every slot in turn. That tells you whether a slot is faulty. Two short test rounds beat hours of speculation.
- Clean the contacts and inspect the slot. Gold fingers pick up oxidation and finger oil. Wipe them gently with a lint-free cloth and a little isopropyl alcohol, let them dry fully, and reinstall. Shine a light into each empty slot and look for bent contacts, debris, or a foreign object. A single displaced pin will drop a module from the system.
- Clear the CMOS and reset firmware to defaults. Overclocked memory settings that survived a hardware change are a classic reason for a stick disappearing. With the machine unplugged, remove the coin cell for a minute or short the clear jumper, then boot and let the board retrain memory at stock settings. Retraining can take thirty seconds or more with a blank screen on the first boot, so be patient before assuming failure.
- Disable the memory overclock profile temporarily. XMP or EXPO profiles ask the board to run memory above its default specification. Four-stick configurations and higher-capacity kits are much harder to stabilise, and a board that cannot hold the profile may drop a module rather than fail outright. Boot at stock JEDEC speed, confirm all capacity appears, then reapply the profile and see whether the problem returns.
- Loosen the timings or lower the frequency. If the profile is the trigger, you do not have to abandon it. Try one speed bin lower, or raise the memory controller voltage slightly within the range your board recommends. Many kits that will not post at their rated speed with four sticks run perfectly one step down, with a performance difference you will never notice in practice.
- Update the motherboard BIOS. Memory compatibility improves substantially over a board’s life, and early firmware often struggles with newer or denser kits. Download the latest release from the board maker, read the notes for memory-related fixes, and follow their flashing instructions exactly without interrupting the process.
- Verify the modules are actually supported. Check the qualified vendor list for your board and confirm your kit’s capacity per stick, rank count, and speed are within the supported range. Boards have a maximum capacity per slot, and a very high density module can be seen partially or not at all on hardware that predates it. Mixing kits bought at different times is another frequent trigger, since the board must find timings that satisfy every module at once.
- Run a memory test. With everything installed, boot a dedicated memory test tool from a USB stick and let it run for at least a couple of full passes. Errors confirm a genuinely defective module and give you the evidence needed for a warranty claim.
Why Dual Channel Matters Here
Even when all your capacity shows up, running the sticks in the wrong slots costs real performance because the board falls back to single-channel operation. That halves effective memory bandwidth and shows up most clearly in integrated graphics performance, large file work, and minimum frame rates in games. Check the memory tab of a system information utility to confirm the channel mode rather than assuming.
If you are adding memory rather than replacing it, buying a matched pair is far more reliable than pairing an old stick with a new one. Our overview of the best dual channel RAM kits explains how matched pairs are binned together, and the guide to the best motherboard compatible RAM covers how to read a qualified vendor list before you order.
Capacity Planning When You Do Replace
If testing points to a genuinely dead module, treat it as a chance to right-size rather than a like-for-like swap. Most modern gaming and general use is comfortable at 16GB, while heavy multitasking, virtual machines, large browser sessions alongside games, and creative applications all benefit from more headroom. Kits sold as a matched set are always the safer purchase over two single sticks bought separately.
For a general upgrade, the best RAM for gaming roundup covers speed and latency combinations that platforms actually reward, the best 32GB RAM selection suits heavier workloads, and if your board uses the newer standard, the best DDR5 RAM list covers kits that hold their rated profiles reliably.
Safety Notes
Always unplug the system and drain standby power before touching memory. Handle modules by their edges and heat spreaders, never the gold contacts. Never force a stick into a slot: the notch in the connector is offset deliberately, so if it does not drop in easily, it is the wrong way round or the wrong standard entirely. Different memory generations are physically keyed to prevent cross-installation, and forcing one will destroy the slot. If you adjust voltages while chasing stability, stay within the range your board’s manual or the kit maker publishes.
Common Mistakes
The biggest is skipping the manual and guessing at slot order. The second is testing with all sticks installed, which guarantees ambiguous results. The third is applying an aggressive memory profile and then blaming the modules when the board cannot sustain it, particularly with four sticks in play. A fourth is panicking during the long blank-screen memory training pass after a firmware reset and cutting power partway through, which can leave settings in a worse state than before. Finally, many people mix a new kit with old sticks and expect the board to reconcile mismatched timings and ranks, which frequently ends with one module ignored.
Frequently Asked Questions
Why does Windows show less RAM than BIOS?
Usually because of a maximum memory limit set in boot configuration, or memory reserved for integrated graphics and hardware. Clear the boot limit first, then check the reserved figure in Task Manager.
Can mismatched sticks cause detection problems?
Yes. Different capacities, ranks, or speeds force the board to find common settings, and it sometimes resolves the conflict by ignoring a module. Matched kits avoid this entirely.
Is a stick that fails in one slot always faulty?
No. Swap it into a slot where another module worked. If it runs there, the slot or its traces are the problem, not the memory.
Should I worry if the first boot after a reset takes ages?
Not usually. The board is retraining memory timings and can sit on a blank screen for up to a minute. Only intervene if it repeats indefinitely.
Does disabling the memory profile hurt performance much?
The difference is measurable but modest for most everyday tasks. Running stable at a slightly lower speed with all your capacity available is a far better outcome than an unstable system missing a stick.
Final Thoughts
Memory faults look dramatic and are usually trivial. Confirm the symptom, clear any software cap, reseat carefully with the manual open, then isolate by testing one stick and one slot at a time. Reset firmware, back off the overclock profile, and update the board before you conclude a module has failed. Only after that sequence does replacement make sense, and by then you will know exactly what to buy instead of guessing. A methodical half hour here saves both the cost of unnecessary parts and the frustration of an intermittently unstable machine later on.
