Owen Bradley Power over Ethernet turned security camera installation from a two-cable job into a one-cable job, but it also moved all the difficulty into the part most people rush: the cable run itself. A camera that drops offline in cold weather, a channel that reboots whenever the infrared lights come on, or a picture that dies after the first heavy rain almost always traces back to how the PoE security camera cable was routed and terminated. This guide covers planning the route, choosing the right cable, getting it through walls and attics without damage, and terminating it so the link holds for a decade.
Plan Every Run Before You Cut Anything
Start at the recorder, not the camera. Decide where the switch or NVR will live, because every cable terminates there and that location dictates the length of each run. A cupboard with mains power, ventilation, and a route into the loft or basement is ideal. Then sketch the building and draw each cable path, noting the total length including vertical drops and service loops.
Ethernet is rated for 100 metres end to end, and PoE voltage drop becomes the practical limit well before that on thin cable. Measure generously: a run that looks like 25 metres on a plan often becomes 40 once it goes up a wall, across a loft, and back down. Add roughly 10 percent plus two metres of slack at each end so you have room to re-terminate a connector later without pulling new cable.
Choosing the Right Cable and Hardware
- Category rating: Cat5e carries PoE and 1Gbps fine for typical camera runs. Cat6 adds headroom and slightly better heat performance on long runs. Cat6a is rarely necessary for cameras and is much harder to pull.
- Solid copper, not copper-clad aluminium. CCA cable has higher resistance, heats up under PoE load, and breaks when flexed. Insist on pure copper, and check the jacket print rather than trusting the listing.
- Conductor gauge: 23AWG loses less voltage than 24AWG and is worth the small extra cost on runs over 50 metres or with power-hungry pan-tilt-zoom cameras.
- Jacket type: Use outdoor-rated UV-resistant cable for anything exposed, direct-burial cable underground, and riser or plenum-rated cable where building codes require it inside walls and ceilings.
- Shielding: Unshielded is normally correct for homes. Only use shielded cable if the run parallels mains wiring closely or passes near large motors, and then ground the shield at one end only.

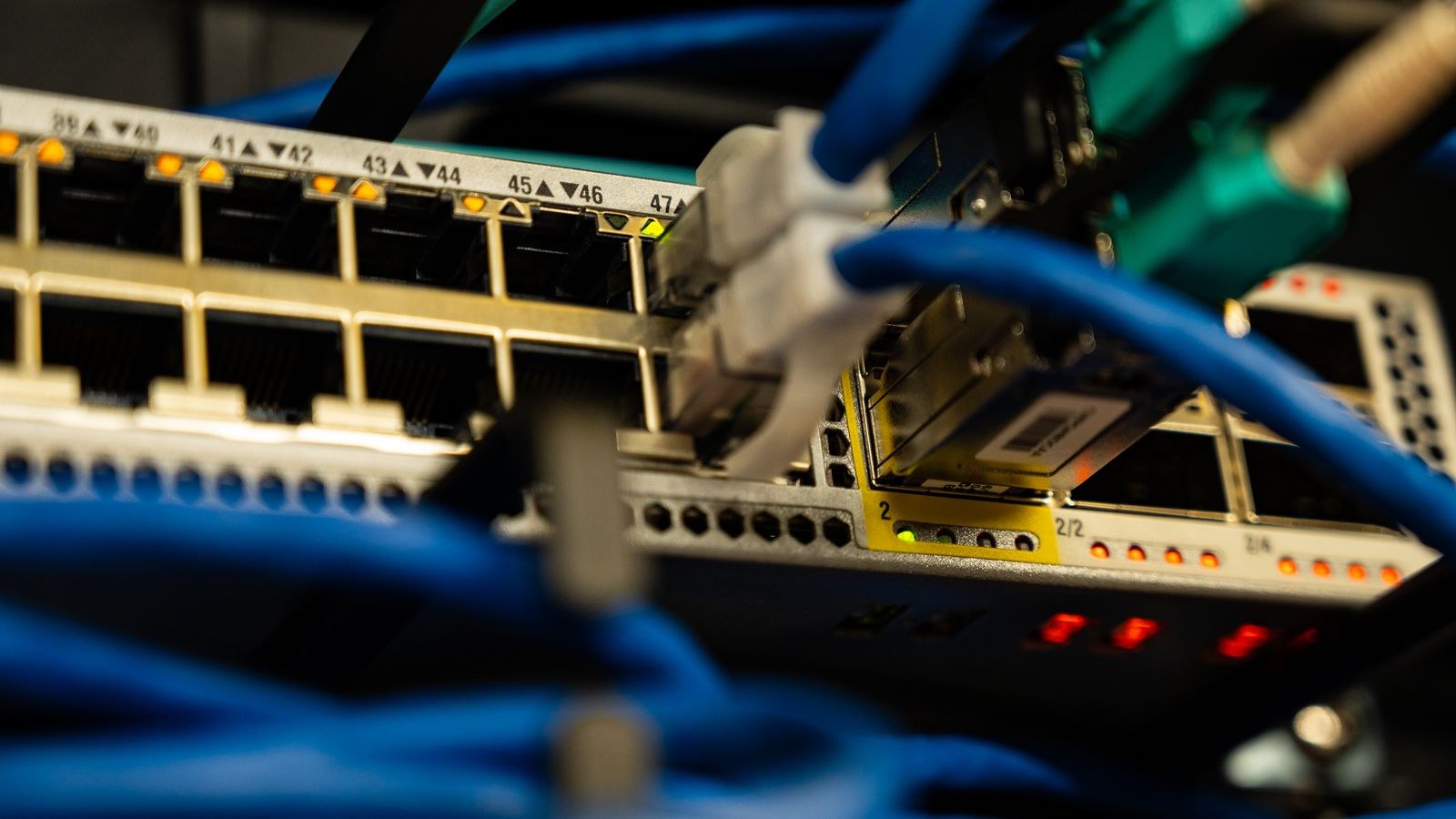

Your switch matters as much as the cable. Add up the wattage of every camera, allow for infrared and heaters at night, and choose a PoE budget with at least 25 percent headroom. Confirm the standard too: 802.3af supplies about 15W per port, 802.3at around 30W, and passive injectors at fixed voltages are not interchangeable with either. Our comparison of the best PoE routers covers combined routing and power options for smaller installations, and if you are still deciding on the cameras themselves the best IP security cameras list notes the power draw of each type.
Tools You Will Need
- Cable reel or pull box, fish tape or glow rods, and a strong pull string
- Ratcheting crimp tool with RJ45 plugs, or a punch-down tool with keystone jacks
- Cable tester capable of showing wiremap and, ideally, PoE voltage
- Long drill bits, hole saw, stud finder, and a voltage detector to avoid live wiring
- Exterior-grade sealant, cable clips or conduit, drip loops, and weatherproof RJ45 boots
- Head torch, knee pads, and a respirator for loft insulation work
Step-by-Step Cable Installation
- Confirm the camera positions physically. Hold the camera at each mounting point and check the view on a phone before drilling. Moving a bracket after the cable is terminated is far more work than moving it now.
- Locate and mark the entry points. Use a stud finder and a voltage detector to check for joists, pipes, and mains cable behind every hole. Drill a small pilot hole first and inspect before committing to the full diameter.
- Run the cable from the recorder outward. Feed from the reel at the equipment end so you can label each run as it leaves. Never pull cable off a coil flat on the floor, as that induces twists that damage the pairs.
- Respect the pulling force and bend radius. Pull steadily by hand rather than yanking, and keep bends at least four times the cable diameter. Stretching or kinking a run permanently degrades its performance even if it tests fine on day one.
- Keep away from mains wiring. Maintain at least 200mm of separation from power cables running in parallel, and cross at right angles where the paths must intersect. This single habit prevents most mysterious noise and dropout problems.
- Support the cable properly. Use J-hooks or clips every 1.2 to 1.5 metres in lofts and along walls. Do not rest cable on ceiling tiles, sharp metal edges, or hot pipes, and never staple through the jacket.
- Seal every exterior penetration. Drill outside holes with a slight downward slope toward the exterior, then fill with exterior-grade sealant once the cable is through. Leave a drip loop below the entry so water runs off rather than tracking along the jacket.
- Leave service loops. Coil about a metre of spare cable in the loft above each camera and two metres behind the recorder. This is your insurance when a connector fails or a camera position changes.
- Terminate to a single standard. Use T568B at both ends of every cable unless your existing system uses T568A, and never mix the two on one run. Untwist no more than 13mm of each pair at the connector; longer untwists cause crosstalk that shows up as intermittent link loss.
- Test every run before mounting the camera. Check the wiremap for continuity, shorts, split pairs, and reversals. A split pair often passes a cheap continuity test yet fails under gigabit and PoE load, so use a tester that flags it.
- Label both ends clearly. Mark the camera location on the cable at the recorder and at the camera. Six identical white cables in a cupboard become a two-hour puzzle without labels.
- Connect, power up, and verify under load. Bring one camera online at a time, confirm the link speed, then check the feed at night when infrared illuminators and heaters raise power draw. Faults caused by voltage drop only appear under that full load.
Handling Long Runs and Voltage Drop
PoE delivers power over the same copper that carries data, so resistance costs you volts. On a 90 metre run of 24AWG cable feeding a camera with heaters, the voltage arriving can fall below the threshold the camera needs, producing reboots that look like a faulty camera. Fixes, in order of preference, are moving the switch closer, stepping up to 23AWG solid copper, using a higher-power 802.3at or 802.3bt port, or adding a PoE extender midway.
Resist the temptation to solve distance with a passive splitter or by joining two cables with a coupler in a loft. Couplers introduce loss and are a common failure point, and unmanaged extenders often halve the throughput. If a run genuinely exceeds 100 metres, the correct answer is a fibre link or a second switch closer to the cameras, not a longer copper run.
Weatherproofing and Outdoor Routing

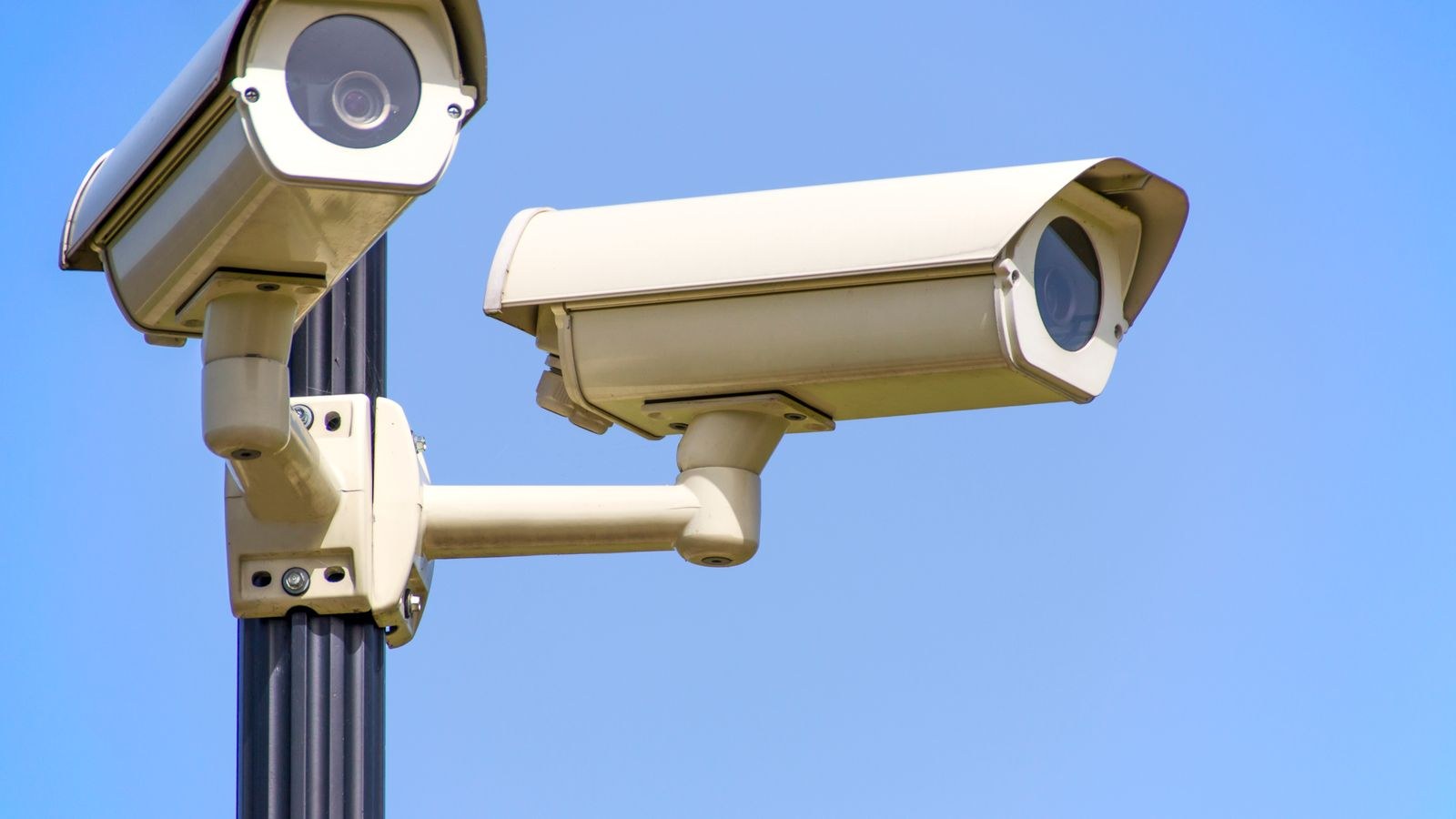

Outdoors, water is the enemy of every connector. Terminate outside joints inside a weatherproof junction box rather than wrapping a plug in tape, and use RJ45 boots with a compression gland where a plug must sit exposed. Where cable runs along a wall, use UV-stable clips or conduit; standard indoor cable becomes brittle and cracks after a couple of summers.
Buried runs need direct-burial rated cable in conduit, laid deep enough to survive garden work and marked on your plan. Any cable entering a building from outside or running between structures should also pass through surge protection, because a nearby lightning strike travels straight down the copper into your switch. A single surge module per outdoor run is far cheaper than replacing an entire recorder and multiple channels, and the systems compared in our best security camera systems guide often bundle that protection.
Common Mistakes to Avoid
The biggest is using copper-clad aluminium cable to save money. It passes a basic test, then fails months later when the run warms up under PoE. The second is terminating before testing, which means every fault has to be diagnosed after the camera is already twelve feet up a wall. The third is leaving no slack, so a single damaged plug forces a complete re-pull.
Also avoid running cable in the same drilled hole as mains wiring, sealing an entry hole with expanding foam that traps moisture against the jacket, and mounting the switch in an unventilated cupboard where PoE heat has nowhere to go. And do not assume coaxial-era habits carry over; if you are migrating an older installation, our explainer on CCTV vs IP security cameras covers what changes when you swap coax for Ethernet, while the best home CCTV systems roundup shows which kits ship with cable pre-terminated for shorter runs.
Frequently Asked Questions
Can I use existing telephone or alarm cable?
No. Those cables lack the twisted-pair geometry and conductor gauge that Ethernet and PoE require. They may appear to work briefly at low resolution, then fail as soon as the camera draws real power or streams at full bitrate.
How many cameras can one switch power?
Divide the switch total PoE budget by the peak wattage of your cameras, then leave headroom. A 65W budget realistically supports four cameras drawing 12W each at night, not eight cameras rated 8W in daylight brochures.
Do I need shielded cable outdoors?
Usually not. Outdoor-rated unshielded cable is fine unless the run parallels heavy power feeds. Shielded cable that is improperly grounded can actually make interference worse by acting as an antenna.
Is it acceptable to join two cables with a coupler?
Only as a temporary diagnostic. For a permanent installation, run a single continuous length or terminate properly into a patch panel. Every inline joint adds loss and a point where moisture and vibration eventually cause failure.
Final Thoughts
A clean PoE installation is mostly patience applied in the right order: plan the route, buy solid copper, pull gently, seal every hole, and test before you mount anything. Those habits cost an extra hour on installation day and save entire weekends of chasing intermittent faults later. Cable is the one part of a camera system you cannot easily upgrade once the walls are closed, so do it properly the first time and the system you build in 2026 will still be delivering clean footage long after the cameras themselves have been replaced.
