Owen Bradley A single smoke alarm sounding in the basement at two in the morning may never wake someone sleeping upstairs behind a closed door. Interconnection solves that problem: when one alarm detects smoke, every alarm in the house sounds simultaneously, giving everyone the maximum possible warning regardless of where the fire starts. Modern building codes require interconnection in new construction for exactly this reason. This guide explains how to interconnect smoke alarms throughout your home, covering both the traditional hardwired method and the wireless approach that suits existing houses without tearing open walls.
Why Interconnection Matters More Than Alarm Count
Adding more standalone alarms increases the chance that one detects a fire, but it does nothing to ensure the people furthest from it hear anything. Fire research consistently shows that closed doors, carpeting, and the general layout of a home attenuate sound dramatically. A sleeping adult two floors from a sounding alarm may not stir at all, and children are notoriously difficult to wake with alarm tones.
Interconnected systems change the calculation entirely. Smoke in the garage sounds the alarm beside the bedroom door. That difference is measured in minutes of escape time, which is the only currency that matters in a house fire.
Two Ways to Interconnect
Hardwired interconnection runs a third conductor, traditionally red, between alarms on a dedicated circuit. When one alarm triggers, it puts a signal voltage on that wire and all the others respond. This is the standard in new construction and remodels where walls are already open. It is reliable, requires no batteries for the interconnect itself, and has no pairing to maintain.
Wireless interconnection uses a radio link between alarms. You mount them independently, put the system into pairing mode, and they form a mesh. No cable runs, no drywall repair, and battery-only units can be placed anywhere including detached garages and outbuildings. This is by far the practical choice for retrofitting an existing home.
The critical constraint on wireless systems is that alarms must be from the same manufacturer and, usually, the same product family. Cross-brand interconnection generally does not work. When shopping for a whole-house set, review the current best interconnected smoke alarms and buy the entire complement at once so compatibility is never in question.
Where Alarms Are Required
Codes vary by jurisdiction, but the widely adopted baseline is consistent and worth following even where not enforced.
- Inside every bedroom or sleeping room
- Outside each separate sleeping area, in the hallway serving those rooms
- On every level of the home, including finished basements
- At the top of each stairway, where smoke naturally collects
- Not inside kitchens or bathrooms, and generally at least ten feet from a cooking appliance
- Not within three feet of HVAC supply registers or ceiling fan blades, where airflow can push smoke away
Attics, crawl spaces, and unconditioned garages have their own considerations. Standard smoke alarms in garages produce constant false alarms from vehicle exhaust and dust; a heat alarm interconnected into the same system is the correct device there.
What You Will Need
- A matched set of interconnectable alarms, enough for every required location
- A step ladder
- Cordless drill and appropriate bits
- Drywall anchors, if not mounting into joists
- Pencil and tape measure
- Fresh batteries if the units are not sealed
- For hardwired work: non-contact voltage tester, wire strippers, wire nuts, and 14/3 cable
Wireless Interconnection Step by Step
- Plan every location on paper first. Sketch the floor plan and mark each alarm position before drilling anything. It is far easier to spot a missing hallway alarm on paper than after the ladder is put away.
- Unbox all units and check they are the same model family. Confirm on the packaging that they are wireless-interconnect capable, not merely battery-powered.
- Install batteries in every unit if they are not sealed, and let them all power up on a table together.
- Pair the alarms before mounting. This is the step that saves an hour. Follow the manufacturer’s enrolment procedure, typically pressing and holding the test button on a designated primary unit until it announces pairing mode, then doing the same on each additional unit in turn.
- Verify the pairing on the table. Hold the test button on one unit and confirm every other unit sounds within about ten seconds. If any stays silent, re-enrol it now while everything is within arm’s reach.
- Mark mounting positions. Ceiling mounting is preferred because smoke rises. Keep alarms at least four inches from any wall. If wall mounting is unavoidable, place the alarm four to twelve inches below the ceiling.
- Fasten the mounting brackets. Drill pilot holes, insert anchors if you are not in a joist, and screw the bracket firmly to the ceiling.

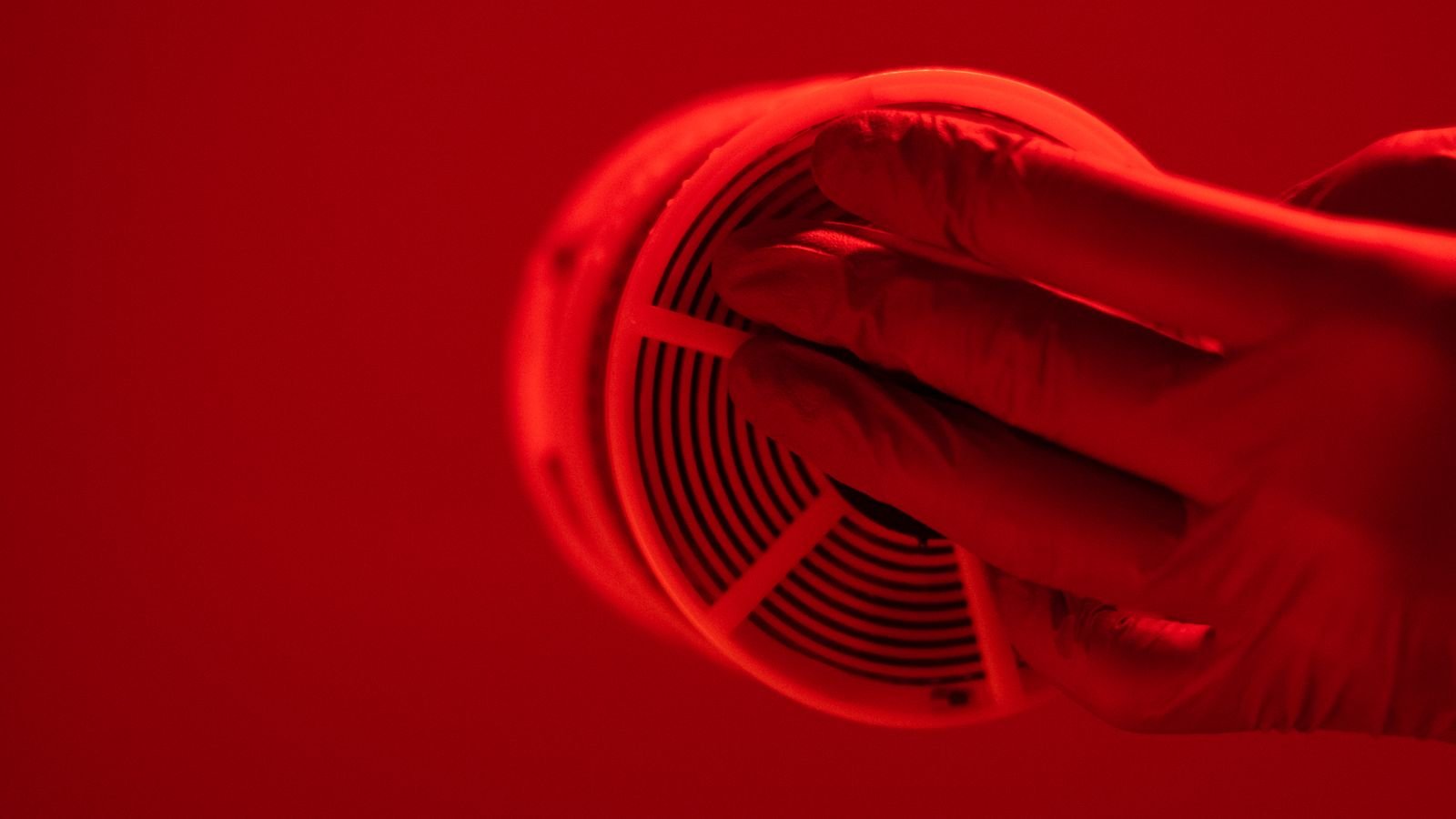

- Mount each alarm by twisting it onto its bracket until it locks. Note that many alarms will not mount at all unless the battery is installed, a deliberate design feature.
- Run a whole-house test. Press and hold the test button on the alarm furthest from the centre of the house. Every alarm should sound. Then repeat from a different unit.
- Walk the house during the test. Have someone hold the test button while you close bedroom doors and confirm the alarm is clearly audible from every sleeping position.
- Label each alarm with its location and installation date on the back or side. Future troubleshooting becomes far simpler.
Hardwired Interconnection Notes
If you are working with existing hardwired alarms or open walls, the interconnect conductor joins every alarm on one circuit. A few points matter.
All hardwired alarms on an interconnect must share the same circuit and the same neutral. Mixing circuits creates a shock hazard and unreliable signalling. The maximum number of interconnected devices is specified by the manufacturer, commonly around eighteen units with a lower sublimit on non-alarm devices such as relays. Exceeding it degrades signal reliability.
Replacing hardwired alarms is usually straightforward: kill the breaker, test the box, unplug the old harness, and plug the new alarm into the matching connector. The complication is that harness connectors differ between manufacturers, so replacing one alarm in an existing set often means replacing all of them or fitting adapter harnesses. This is a strong argument for replacing the full set at once, which you should be doing at the ten-year mark anyway.
Hybrid systems exist too. Some hardwired alarms can bridge to wireless units, letting you extend coverage into a shed or a converted attic without pulling cable. Confirm this capability on the spec sheet before relying on it.
Testing and Maintaining the System
- Test monthly from a different alarm each time, so every unit’s transmitter gets exercised over the course of a year.
- Vacuum each alarm quarterly with a soft brush to clear dust from the sensing chamber.
- Replace removable batteries annually and date them with a marker.
- Replace every alarm at ten years from the manufacture date printed on the back.
- Re-verify pairing after any battery change on wireless systems, since some models drop enrolment when fully depowered.
- Keep the manual or photograph the pairing instructions and store them with your household documents.
Common Mistakes
- Mixing brands on a wireless system. They will not talk to each other, and you will not discover this until the test.
- Mounting before pairing. Enrolment from the top of a ladder in six locations is needlessly painful.
- Putting a smoke alarm in the garage. Use a heat alarm there instead.
- Installing too close to the kitchen. Nuisance alarms lead to disabled units, which is the worst outcome.
- Testing only one alarm. A one-way failure is easy to miss unless you test from multiple units.
- Forgetting carbon monoxide coverage. Many interconnect families include combination units, which is the tidier solution if you burn any fuel in the home.
Frequently Asked Questions
Can I interconnect alarms from different brands?
Almost never. Wireless protocols are proprietary, and even hardwired interconnect can behave unpredictably across brands. Buy one matched set.
How many alarms can be interconnected?
Manufacturers typically permit somewhere around a dozen to eighteen devices on one system. Check the specific limit in your manual, and note that relays and accessories often count against a separate sublimit.
Does wireless interconnection need Wi-Fi or an internet connection?
No. The alarms communicate directly over their own radio link. Smart models may additionally offer Wi-Fi for phone notifications, but the life-safety interconnection itself works with the router unplugged.
Will interconnection work if the power goes out?
Yes, provided battery-powered units have good batteries and hardwired units have working backup cells. This is precisely why the backup battery requirement exists.
Do I need a permit to install interconnected alarms?
Battery-powered wireless alarms generally require no permit. New hardwired circuits usually do. Replacing existing hardwired alarms like-for-like typically does not, but rules vary locally.
Final Thoughts
Interconnection is the upgrade that turns a collection of individual alarms into an actual system. Wireless models make it achievable in a single afternoon in almost any existing home, with no cable runs and no drywall repair. Plan the locations on paper, pair every unit on the kitchen table before you touch a drill, and finish by walking the house during a live test with bedroom doors closed. That last check is what tells you the system will do its job at three in the morning.
