Owen Bradley HDMI ARC and its faster sibling eARC exist to solve one annoying problem: getting sound out of a TV and into a soundbar or receiver without a second remote, a separate optical cable, or a maze of inputs. Done properly, one cable carries audio back from the TV to your sound system, the TV remote controls the volume, and everything wakes together. Done carelessly, you end up with no sound, delayed dialogue, or a system that quietly downgrades a lossless soundtrack to basic stereo. This tutorial covers the whole setup in order: which ports to use, which cable you need, the settings that must be switched on, and what to do when it does not work.
ARC Versus eARC: What Actually Changes
ARC stands for Audio Return Channel. It reverses the normal direction of a single HDMI link so the TV can send audio back down the same cable that would usually carry video in. That means your smart TV apps, aerial tuner and anything plugged into the TV can all reach the sound system over one connection.
The limitation of standard ARC is bandwidth. It reliably carries stereo and compressed surround formats, but it cannot pass the high bitrate lossless soundtracks found on modern discs and streaming services. eARC, the enhanced version, raises the available bandwidth dramatically and adds proper handshaking, so uncompressed multi-channel audio and object-based formats travel intact. If your sound system can decode those formats, eARC is what unlocks them.
Both ends must support the same standard. A TV with eARC connected to a soundbar that only has ARC will fall back to ARC, which is fine but caps the quality. If you are shopping with lossless audio in mind, our list of the best gaming TVs with eARC covers displays that pass full-fat audio, and the best soundbar speakers guide highlights bars that can actually decode it.
What You Need Before Starting
- A TV with an HDMI port explicitly labelled ARC or eARC. Only one port on most sets carries it.
- A soundbar or AV receiver with a matching HDMI ARC or eARC input, again usually a single dedicated port.

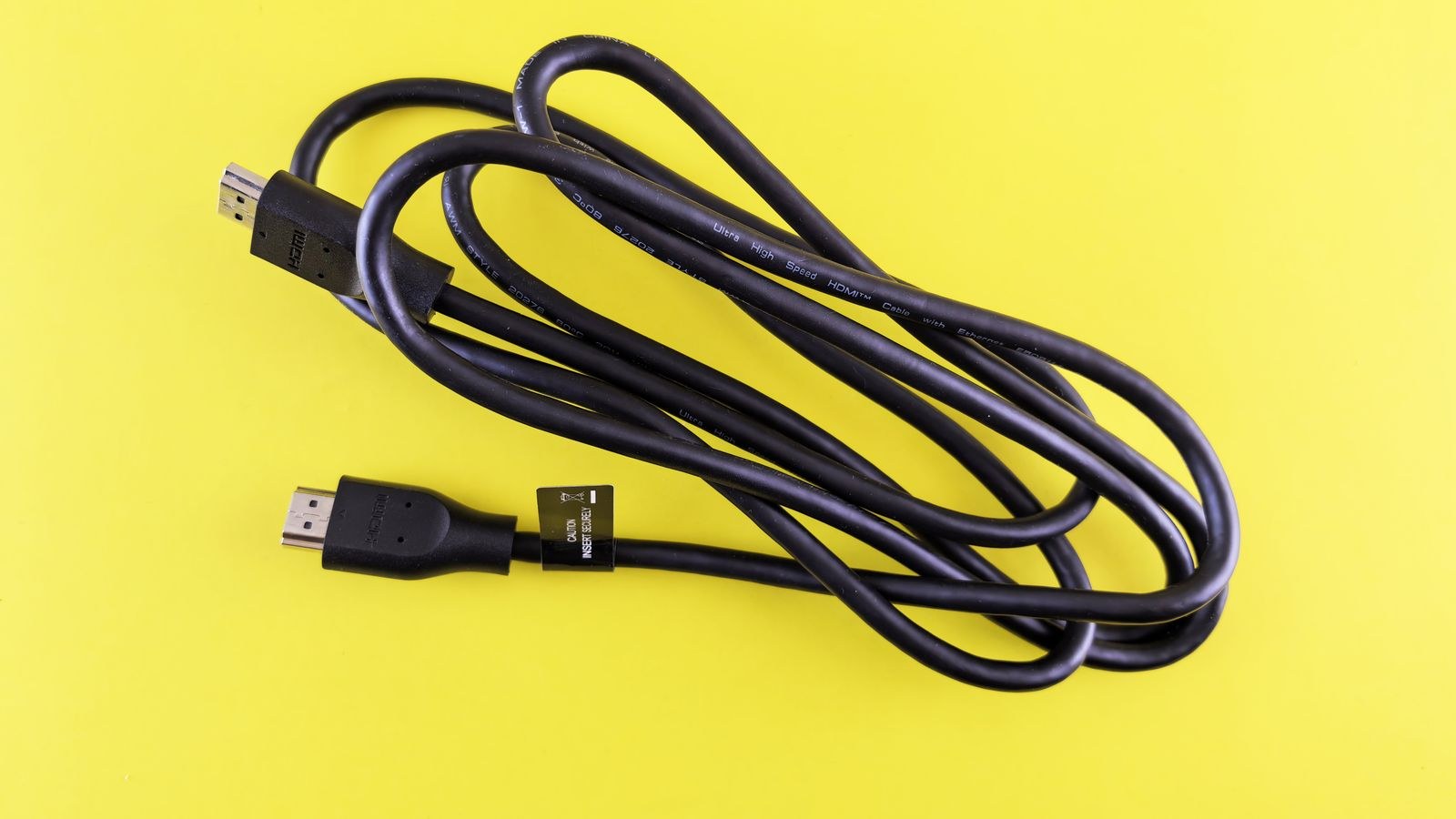

- A High Speed HDMI cable with Ethernet for standard ARC, or an Ultra High Speed certified cable for eARC.
- Both remotes, and access to the settings menus of the TV and the audio device.
- Ten minutes, plus a source of surround content to verify the result.
Do not assume the cable in the box is adequate. Cables bundled with older equipment often predate the current standards, and eARC in particular benefits from a certified cable even though it does not strictly demand the highest bandwidth grade.
Step by Step: Setting Up HDMI ARC and eARC
- Find the labelled port on the TV. Look along the input panel for the HDMI socket printed with ARC or eARC. Using any other port will pass video but no return audio, and this single mistake accounts for most failed setups.
- Find the matching port on the soundbar or receiver. Sound devices normally have several HDMI inputs plus one HDMI output marked ARC or eARC. The cable must go into that output, not an input.
- Connect the two labelled ports directly. Run a single certified HDMI cable between them with nothing in between. Avoid splitters, switches and adaptors, which almost always break the return channel.
- Enable HDMI-CEC on the TV. CEC is the control protocol ARC relies on, and every brand names it differently: Anynet+, Bravia Sync, Simplink, Viera Link, HDMI Control and so on. Find it in the general or external device settings and switch it on.
- Enable CEC on the sound device. Soundbars and receivers have their own equivalent setting, often called HDMI Control or TV Control. Both ends must have it active or the link will not establish.
- Turn on eARC if your equipment supports it. Many TVs ship with eARC set to off or auto, hidden under a sound or expert settings menu. Set it explicitly to on, then do the same on the soundbar. Standard ARC often works without this, but eARC rarely does.
- Set the TV audio output to the HDMI system. In the sound menu, change the speaker output from internal speakers to HDMI ARC, Audio System or Receiver. The TV speakers should mute once the link is live.
- Choose the correct digital audio format. Look for a setting called Digital Audio Out or HDMI Output Format. Choose Bitstream, Passthrough or Auto so the soundbar receives the original encoded stream and decodes it. Selecting PCM forces the TV to convert everything to basic stereo or multi-channel and discards object-based formats.
- Power cycle everything. Turn both devices off and unplug them from the mains for a full minute, then power the TV first and the sound device second. This forces a clean handshake, which is the single most effective fix for a link that half works.
- Verify with real content. Play a source known to carry surround audio and check the format shown on the soundbar display or in the TV sound information screen. If it reports the format you expected, the setup is complete.
Getting the Audio Format Right
A working ARC connection that reports plain stereo is technically a success and practically a disappointment. The format you end up with depends on three things: what the source sends, what the TV is willing to pass on, and what the sound device can decode. Weakness at any point collapses the result to the lowest common denominator.
Set the TV to bitstream or passthrough wherever possible so it acts as a conduit rather than a converter. Then check the app or source settings themselves, because many streaming apps default to stereo unless you enable surround in their own audio menu. Finally, some TVs have a separate option controlling whether object-based formats are passed at all; if surround works but the immersive format does not, that toggle is usually the culprit.
Remember that ARC will compress where eARC will not. If you have invested in a system built around lossless decoding, such as those in our best home theater speakers roundup, running it over standard ARC wastes much of that capability.
Should Sources Go Through the TV or the Receiver?
With ARC working, you have two valid layouts. In the first, every source plugs into the sound device and video passes through to the TV. In the second, every source plugs into the TV and audio returns over ARC. The second approach has become the more popular choice because it keeps the video path as short as possible.
Routing sources into the TV means fewer devices in the video chain, which reduces handshake failures and lets you use the TV’s own high bandwidth ports for a console without a receiver in the way. It also means a single input list to navigate. The trade-off is that the TV becomes the bottleneck for audio, so it only works well if it supports eARC and passes formats faithfully. Setups built around best HDMI 2.1 gaming TVs usually favour this layout because the display’s ports are the most capable part of the system.
Route sources through the receiver instead when your TV is older, passes only compressed audio, or lacks enough high bandwidth inputs. In that case the receiver handles decoding directly and the TV never touches the audio at all.
Troubleshooting Common ARC Problems
When there is no sound at all, work through the basics in order: confirm the cable is in the ARC-labelled ports at both ends, confirm CEC is enabled on both devices, confirm the TV output is set to the audio system, then unplug both from the mains for a minute. That sequence resolves the large majority of silent setups.
If the sound cuts out intermittently, suspect CEC conflicts. Having several CEC-capable devices on the same TV can cause them to fight over control, so disable CEC on anything that does not need it. Poor quality or very long cables also cause dropouts on eARC specifically, since it carries far more data than ARC.
If volume control does not follow the TV remote, the CEC link is partially established. Toggle CEC off and on at both ends, and check whether the sound device has a separate remote-control learning or TV volume setting. If the TV speakers refuse to mute, the output setting has not switched over properly.
If audio and picture drift apart, use the lip sync or audio delay offset in the TV or soundbar menu. Small delays are normal because video processing takes time; the offset exists precisely to compensate.
Mistakes to Avoid
The most common error is plugging into the wrong port, closely followed by using an input on the soundbar rather than its HDMI output. After that comes leaving the TV audio format on PCM, which silently discards surround information and leaves people convinced their expensive system is faulty. Adding a switch or splitter into the ARC link is another reliable way to break it, as almost none of them handle a return channel correctly.
Finally, do not skip the power cycle. ARC negotiates once at power-on, and a link that was configured while devices were half awake often stays broken until everything restarts cleanly. If you are still weighing whether a dedicated sound system is worth it over the built-in drivers, our comparison of the best TV speakers explains what you actually gain.
Frequently Asked Questions
Do I need a special HDMI cable for ARC?
Standard ARC works with any High Speed HDMI cable with Ethernet. For eARC, use a certified Ultra High Speed cable to avoid dropouts, since it carries far more data.
Can I use ARC and still connect a console to the TV?
Yes. Plug the console into any high bandwidth HDMI input on the TV, and its audio will travel back to the soundbar over the ARC connection automatically.
Why does my soundbar show stereo instead of surround?
Usually because the TV digital audio output is set to PCM rather than bitstream, or the streaming app itself is configured for stereo. Check both settings.
Is optical audio a reasonable alternative?
Optical still works and is a fine fallback, but it cannot carry lossless or object-based formats and does not support remote volume control through the TV.
Final Thoughts
Setting up HDMI ARC or eARC comes down to a short list of non-negotiables: the labelled port at both ends, a suitable certified cable, CEC enabled everywhere, eARC explicitly switched on, and the TV audio format set to bitstream rather than PCM. Get those five right and the rest tends to fall into place. When something misbehaves, resist the urge to change several settings at once; power everything down for a full minute and bring it back up display first instead. That approach will give you one cable, one remote, and audio that arrives exactly as the source intended in 2026 and for years afterwards.
