Owen Bradley Case fans look simple until you hold one and realize both sides look plausible as the front. Get the direction wrong and you can turn a well-cooled build into a heat trap, with hot exhaust air recirculating straight back over the graphics card. Get it right and the same fans, in the same case, can drop component temperatures by several degrees without spinning any faster. This guide explains how to read fan direction on any model, where to place intakes and exhausts, how filters and pressure balance change the picture, and how to verify your setup actually works once everything is buttoned up.
How to Tell Which Way a Fan Blows

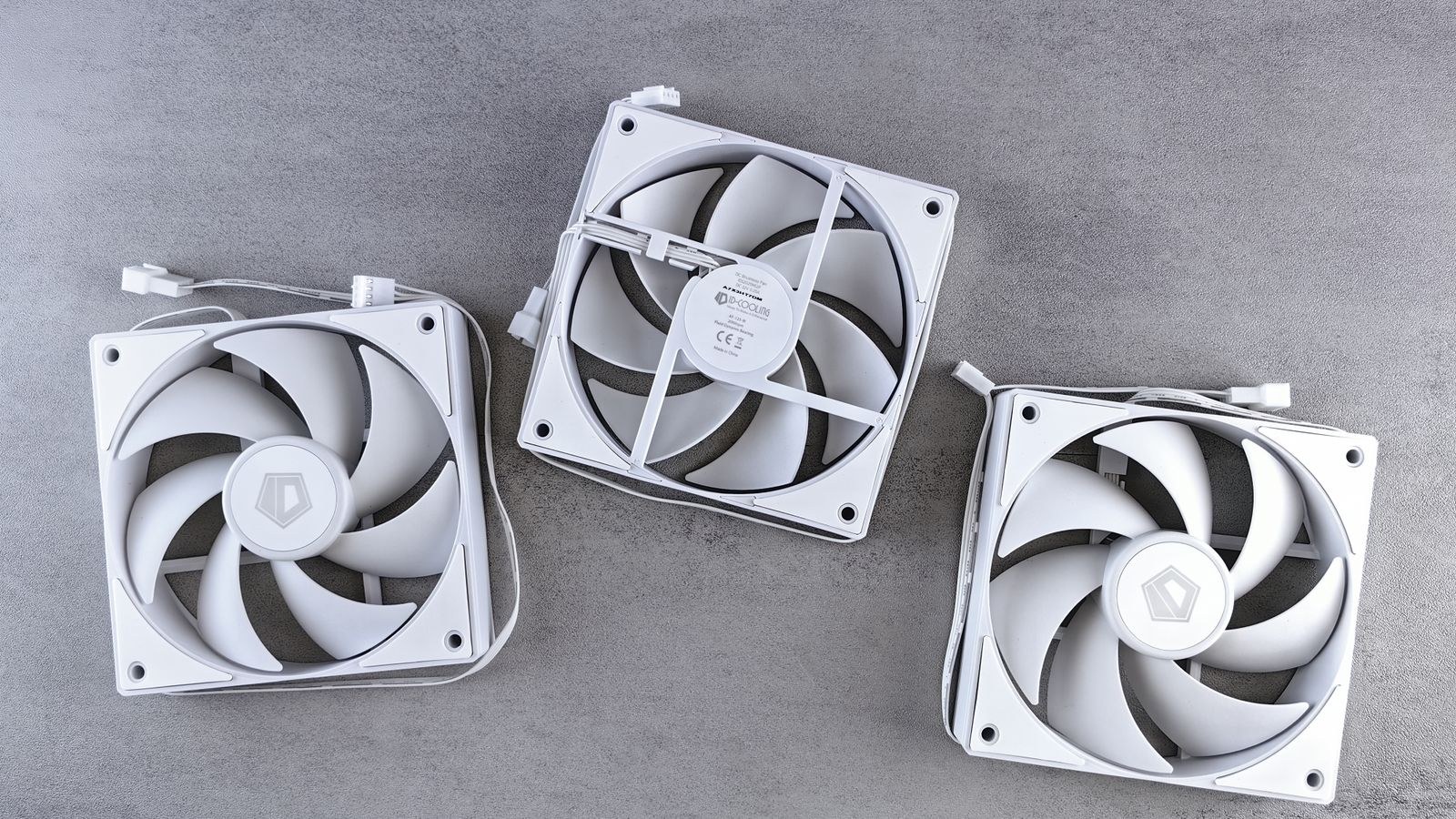

Every case fan pushes air in one direction and pulls it from the other. Three reliable indicators tell you which is which, and you should check at least two before mounting anything.
- Arrows on the frame. Most fans have two small moulded arrows on one side edge. One shows airflow direction, the other shows blade rotation. The airflow arrow is the one you care about.
- The support struts. Air always exits the side where the plastic struts and the motor hub bracing are visible. The clean, open side with just the blades is the intake side.
- The sticker. The label on the motor hub faces the exhaust side on virtually every design, so air blows toward the face you can read.
If you are still unsure, briefly power the fan and hold a tissue near each face. It gets pulled toward the intake side and pushed away from the exhaust side. That five-second test settles any ambiguity, and it is worth doing once with a new fan model so you recognize the pattern for the rest of the set.
The Basic Airflow Plan
Hot air rises and your case should work with that, not against it. The near-universal layout is cool air in at the front and bottom, hot air out at the rear and top. That creates a diagonal current that sweeps across the graphics card, up through the CPU cooler, and out the back before it can recirculate.
In practice this means front fans mounted with their open blade side facing the front panel, so they pull outside air in. The rear fan mounts with its open side facing into the case, so it pulls interior air out through the back. Top fans almost always work as exhaust, since that is where the hottest air naturally collects. Bottom fans, when a case supports them and has a dust filter there, act as intake feeding cool air directly to the graphics card.
Case design decides how well any of this works. A mesh front panel lets intake fans actually move air, while a solid glass or metal front forces them to breathe through narrow side slits. If your temperatures are stubborn no matter what you try, the chassis may be the limiting factor. Compare the best PC cases for airflow for balanced designs, or look at the best high airflow PC cases if you run hot components and want maximum ventilation.
Step-by-Step: Setting Up Your Case Fans
- Power down and open both side panels. Unplug the power supply from the wall and hold the power button for five seconds to drain residual charge before reaching inside.

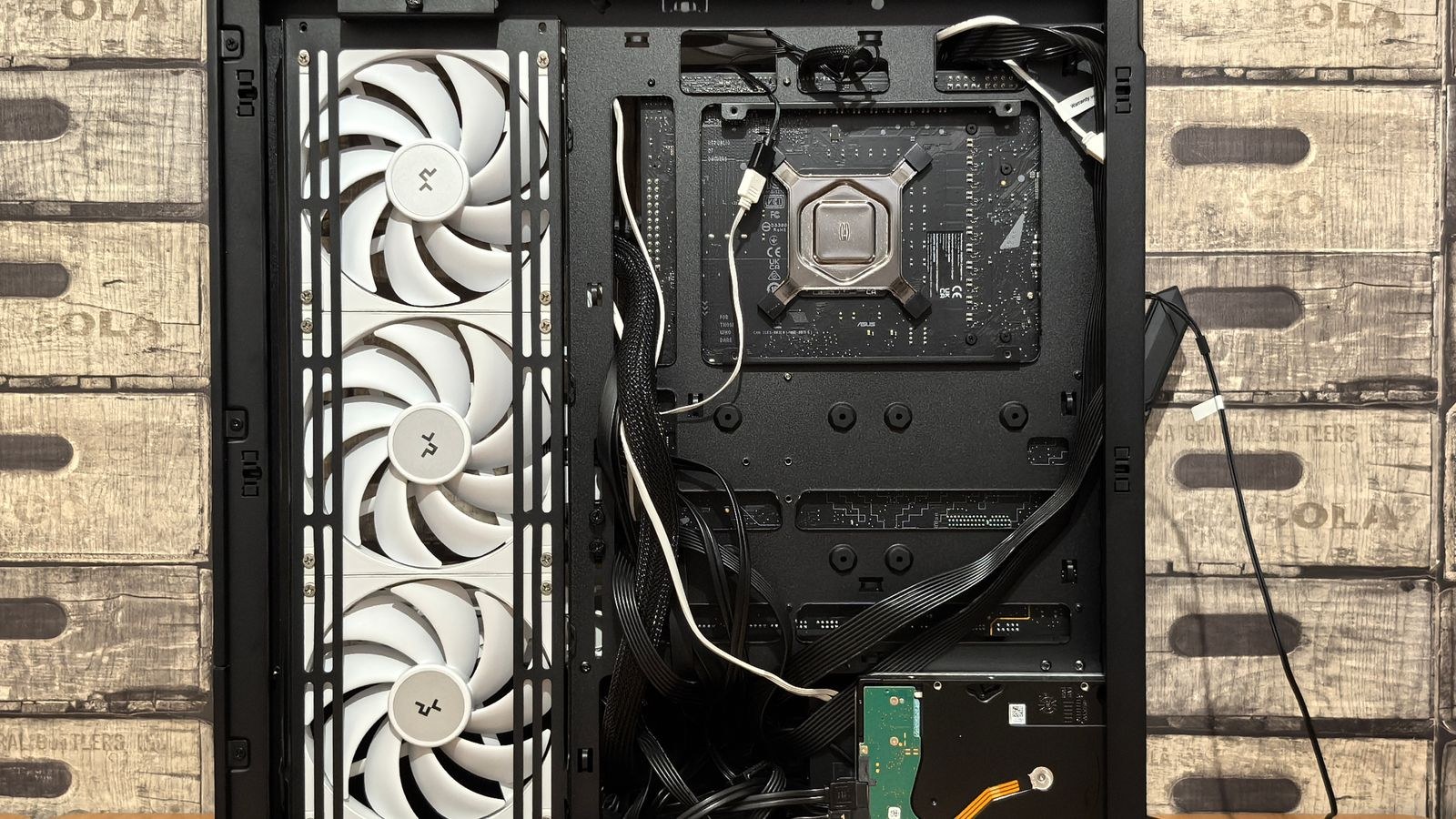

- Map your existing fans. Note every mounting position the case offers, including any you are not using yet, and identify the direction of each fan already installed using the strut and sticker method above.
- Decide your intake and exhaust count. A common starting point in a mid-tower is two or three front intakes, one rear exhaust, and optionally one or two top exhausts. Aim for intake capacity that is equal to or slightly greater than exhaust capacity.
- Mount front intakes. Orient each fan so the open blade side faces outward toward the front panel, then screw it to the front bracket. Use the long fan screws that came with the case, not motherboard screws.
- Mount the rear exhaust. Position it so the strut side faces the rear grille, meaning air leaves through the back of the case. This fan should sit at the same height as the CPU cooler where possible.
- Add top exhausts if the case supports them. Orient the strut side upward. If you are also using a top-mounted radiator, plan clearance with tall memory modules before committing.
- Point the CPU cooler fan toward the rear exhaust. On a tower air cooler, the fan should push air through the fin stack in the same direction as your rear fan, creating one continuous path rather than two competing ones.
- Route and connect the cables. Run each fan lead behind the motherboard tray to a PWM hub or to a case fan header. Match the four-pin connector to the four-pin header, lining up the plastic key.
- Fit dust filters on every intake. Filters belong only on the air coming in. Putting one on an exhaust just restricts airflow while doing nothing for dust.
- Close the case and verify. Boot the system, then hold a thin strip of tissue at the front grille and the rear grille. It should be drawn toward the front and blown away from the rear.
Positive, Negative, and Balanced Pressure
Pressure describes whether your intakes move more air than your exhausts. When intake capacity exceeds exhaust, the case runs at slightly positive pressure and excess air escapes through every gap and vent. Because that air entered through filters, far less dust accumulates inside. This is the setup most builders should choose.
Negative pressure, where exhausts dominate, pulls unfiltered air in through seams, cable cutouts, and expansion slots. It can shave a degree or two off temperatures because air leaves quickly, but the dust cost is significant over months. Balanced pressure sits between the two and is a perfectly reasonable target if you clean filters regularly.
A practical rule: count fan positions, not just fan speeds. Three front intakes against one rear and one top exhaust gives mild positive pressure. Two intakes against three exhausts gives negative. Remember that filters reduce effective intake airflow, so a filtered three-in, three-out layout typically ends up slightly negative in practice.
Static Pressure Versus Airflow Fans
Fan design matters when there is something in the way. Airflow-optimized fans have wider blade spacing and move a lot of air across open space, which suits unobstructed case positions. Static-pressure fans use tighter, steeper blades to push air through resistance, which is what you want on radiators, dense heatsinks, and behind restrictive filters or mesh panels. Many modern fans balance both adequately, but if you are mounting to a radiator, choose a model rated for static pressure. Our roundup of the best cooling fans for PCs covers both categories, and the guide to PC cooling fans, liquid cooling, and airflow explains how radiator placement changes the calculation.
Safety Notes
Always disconnect mains power before installing fans, and never spin a fan up with your fingers near the blades. When cleaning, hold the blades still with a finger before applying compressed air, because spinning a fan backwards at high speed can generate voltage that feeds back into the header and damage it.
Check screw length too. Fan screws are coarse and long by design. Using short motherboard screws leaves the fan loose and vibrating, while forcing a screw into a radiator can puncture a fin channel. Finally, do not exceed your motherboard header’s current rating when daisy-chaining fans, which is typically one amp per header. Use a powered hub for larger fan counts.
Troubleshooting
If temperatures did not improve after rearranging fans, the usual culprit is a fan fighting the flow. Re-check every orientation, especially the CPU cooler fan and any top-mounted fan, since those are the two most often installed backwards. A single reversed fan in the middle of the path can undo the benefit of three correct ones.
Rattling at certain speeds usually means resonance rather than a failing bearing; loosen the mounting screws a quarter turn or add rubber pads. A fan that does not spin at all is most often plugged onto only two or three pins of the header, or connected to a hub that lost its own power lead. And if one fan runs at full speed while others idle, it is probably on a three-pin voltage header while the rest use four-pin PWM control.
Persistently high CPU temperatures despite good case airflow usually point at the cooler rather than the fans. Check that the CPU cooler is drawing cool air from the front intake path and exhausting toward the rear, and consider whether it is sized for your processor. The best CPU coolers with high airflow pair well with the layout described here.
Common Mistakes to Avoid
The most frequent error is treating top fans as intake because it feels symmetrical. Pulling air in at the top fights the natural rise of hot air and pushes warm air back down onto the CPU cooler. Reserve the top for exhaust unless you are running a specific radiator configuration that requires otherwise.
Another is adding fans without checking whether they are choked. Six fans behind a solid front panel move less total air than two behind a mesh one, so panel design comes first. Builders also forget filters entirely, then wonder why heatsinks clog within a year, or they install filters on exhausts where they only add restriction.
Finally, resist the urge to run everything at maximum speed. Beyond a moderate RPM, noise climbs much faster than cooling improves. A well-oriented set of fans at moderate speed almost always beats a badly oriented set at full tilt.
Frequently Asked Questions
Should I have more intake or exhaust fans?
Slightly more intake is the safer default. Positive pressure means the air entering your case has passed through filters, which dramatically reduces internal dust buildup. The temperature difference between positive and negative pressure is small, so choose based on maintenance rather than degrees.
Which way should the CPU cooler fan face?
On a tower cooler, the fan should push air through the fins toward the rear of the case, aligning with the rear exhaust fan. If you use two fans in a push-pull arrangement, both must face the same direction so they cooperate rather than cancel out.
How many case fans do I actually need?
Two well-placed fans, one front intake and one rear exhaust, cover a modest build. Three intakes and two exhausts is a comfortable configuration for a gaming system with a warm graphics card. Beyond that, returns diminish quickly and noise becomes the limiting factor.
Final Thoughts
Fan direction is one of the cheapest performance improvements available to any builder, because it costs nothing but time. Verify each fan’s direction using the struts and sticker, pull cool air in at the front and bottom, push hot air out at the rear and top, and align your CPU cooler with that same path. Aim for slightly positive pressure with filters on every intake, then confirm the result with a tissue test rather than assuming.
Once the layout is right, the rest is maintenance: rinse filters regularly, tune your fan curves so the system stays quiet at idle, and revisit the arrangement whenever you add a component that changes the heat picture. Do that and your build will run cooler and quieter through 2026 and well beyond, using the fans you already own.
