Owen Bradley A turntable is one of the few pieces of audio gear that will not work properly straight out of the box. Unlike a streaming speaker you simply switch on, a record player needs to be levelled, balanced and adjusted before the stylus ever touches a groove. Get that setup wrong and the consequences are immediate and expensive: distorted sound, skipping in loud passages, uneven wear on your stylus and, worst of all, permanent damage to records you cannot replace. The good news is that setting up a turntable and balancing the tonearm takes about twenty minutes and follows the same logic on nearly every deck sold today. This guide walks through the process from unboxing to the first side of vinyl, and explains what each adjustment does so you can repeat it confidently.
What You Need Before You Start
Most of the setup is done by hand, but a few inexpensive items make the job far more accurate. Gather everything before you begin so you are not fumbling with a suspended tonearm halfway through.
- A small spirit level or a phone levelling app to check the plinth and platter sit perfectly flat.
- The counterweight and anti-skate parts supplied in the box, plus the headshell screws and washers if the cartridge is not pre-fitted.
- A small flat-blade screwdriver and, on some decks, a 2mm hex key for the arm height collar.
- A cartridge alignment protractor, usually a printed card included with the turntable or downloadable and printed at home.
- A stylus force gauge if you want to verify tracking weight precisely rather than trusting the counterweight dial.
- A soft brush and lint-free cloth for dust on the platter, mat and stylus.
You will also want a sturdy, isolated surface. A rigid shelf or heavy sideboard away from the speakers is ideal. A wobbly side table or a shelf that shares a wall with a subwoofer will transmit vibration back into the stylus and produce a muddy, feedback-prone sound no amount of tonearm adjustment can fix.
Step-by-Step Turntable Setup
- Unpack carefully and remove the transit protection. Most turntables ship with foam blocks under the platter, a cable tie or clip holding the tonearm to its rest, and a plastic guard over the stylus. Remove the packing screws or foam first, leave the arm clipped down for now, and keep the stylus guard on until the very last step.
- Position the deck and level it. Place the turntable on your chosen surface with a few inches of clearance behind it for cables and the dust cover hinge. Lay the spirit level across the plinth front to back, then side to side, and adjust the feet until the bubble is centred both ways. If the feet are not adjustable, use thin card shims. A tilted deck pulls the stylus toward one groove wall and causes uneven wear.
- Fit the platter, belt and mat. Lower the platter onto the spindle, then loop the drive belt around the motor pulley through the access holes if your deck is belt driven. Check the belt sits flat in its channel and is not twisted. Spin the platter a full turn by hand to confirm it runs smoothly and does not rub the plinth, then lay the mat on top.
- Mount the cartridge if it is not pre-installed. Slide the cartridge into the headshell, fit the screws loosely, and connect the four coloured wires to the matching pins: white to left positive, blue to left negative, red to right positive, green to right negative. Grip the tags, never the wires, when pushing them on.
- Align the cartridge with the protractor. Place the protractor over the spindle, lower the stylus onto the alignment grid, and slide the cartridge forward or back in the headshell slots until the stylus sits on the point and the cartridge body runs parallel with the grid lines. Check both null points, tighten the screws evenly, then verify alignment once more because tightening often nudges it.

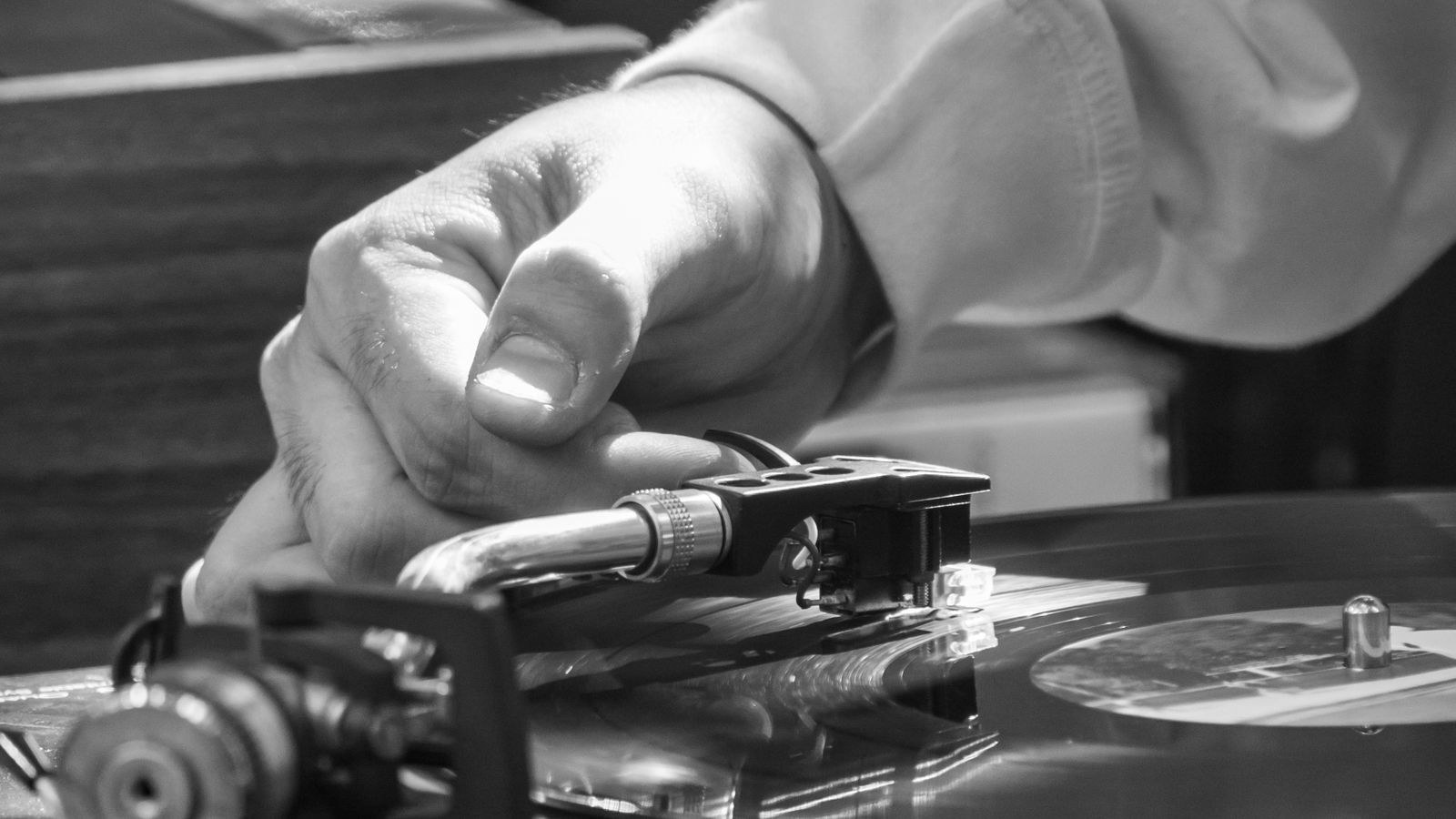

- Fit the counterweight and zero-balance the arm. Thread the counterweight onto the rear of the tonearm without pushing it fully home. Unclip the arm, take the stylus guard off, and gently lift the arm free of its rest while supporting it. Slide the counterweight forward or back until the arm floats level, neither dropping to the platter nor rising to the stops. That is your zero-balance point.
- Set the tracking force dial to zero. With the arm still floating, hold the counterweight still and rotate only its numbered outer ring until zero lines up with the marker on the arm tube. The weight itself must not move during this step. Return the arm to its rest and clip it down.
- Dial in the tracking force. Turn the whole counterweight anticlockwise, viewed from the front, until the number matching your cartridge’s recommended force sits at the marker. Most moving magnet cartridges call for something between 1.5 and 2.5 grams, and the figure is printed in the cartridge manual. If you own a force gauge, place it on the platter and confirm the real reading matches the dial.
- Set anti-skate to match. Anti-skate counteracts the inward pull the groove exerts on the arm. On nearly all decks you simply set the anti-skate dial or hang the weight on the notch corresponding to the same number as your tracking force. If you set 2.0 grams of downforce, set 2.0 of anti-skate.

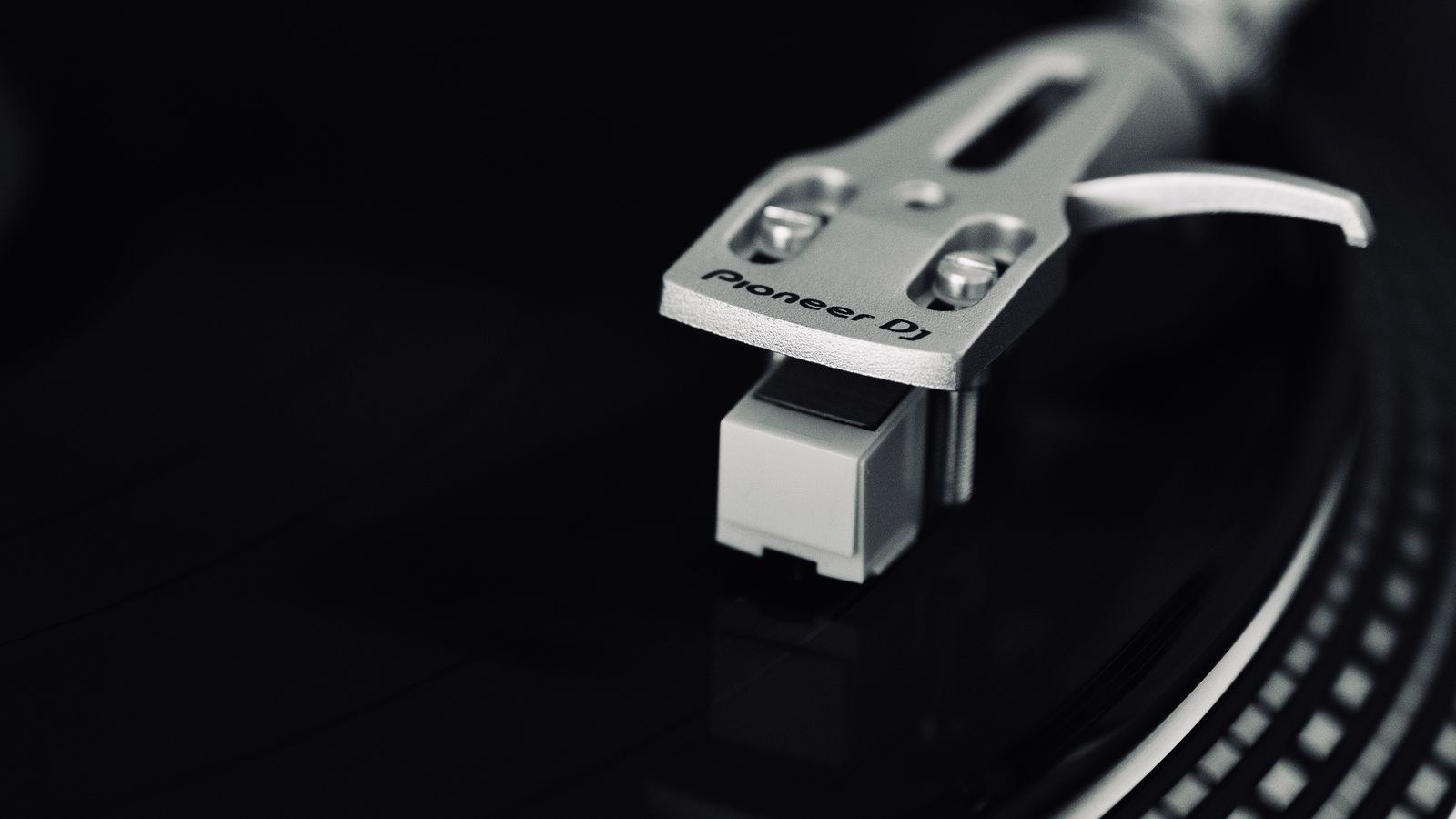

- Check arm height and connect the outputs. With a record on the platter and the stylus in the groove, look at the arm tube from the side. It should sit roughly parallel to the record surface. Adjust the arm base collar if your deck allows it. Then run the RCA leads and ground wire to your phono stage or amplifier, and connect that to your speakers.
- Verify speed and play a test side. Switch on, select 33 or 45 to match the record, and let the platter reach steady speed before lowering the cueing lever. Listen for clean, centred sound with no sibilance or one-sided distortion.
Choosing Speakers That Match the Setup
Careful tonearm balancing only pays off if the signal has somewhere good to go. A phono cartridge produces a very low output that must be amplified by a phono stage before it can drive anything, so check whether your turntable, amplifier or speakers include one. Powered designs from our list of the best speakers for turntable setups often build the phono stage in, which removes a box and a pair of cables from the chain.
If you want the whole system settled in one purchase, an all-in-one option from the best turntable with speakers roundup or the best record player with speakers guide keeps matching simple, though separates almost always sound better as you upgrade. For a compact two-channel system on a sideboard, compare the best bookshelf speakers for vinyl against the broader selection of best speakers for vinyl playback, and keep them off the same shelf as the deck to avoid feedback.
Safety and Handling Precautions
There is no mains danger here beyond ordinary appliance sense, but there is plenty of scope for damaging fragile parts. The stylus tip is a tiny diamond on a thin cantilever and it snaps or bends with almost no force. Always fit the guard before moving the arm for anything other than playback, and never wipe the stylus sideways with a cloth.
Support the tonearm with your finger whenever it is unbalanced, particularly during the zero-balance step, because a suddenly nose-heavy arm will drop straight onto the platter. Unplug the turntable from the mains before fitting or removing the belt so the motor cannot start unexpectedly. Finally, transport the deck with the platter removed and the arm clipped down; the bearing and the arm are the two parts most often damaged in a house move.
Troubleshooting Common Setup Problems
The Record Skips or Jumps
Skipping in loud passages almost always means the tracking force is too low or the deck is not level. Confirm the counterweight ring still reads what you set, recheck the spirit level, and nudge the force up by 0.1 grams at a time within the cartridge’s stated range. Persistent skipping in exactly the same spot points to a damaged record instead.
Sound Only From One Channel
A dead channel is nearly always a wiring fault. Check the four cartridge tags are firmly seated and none have slipped off, then swap the RCA leads at the amplifier end to see whether the fault follows the cable. If it moves, the cable is at fault; if it stays put, the problem is at the cartridge.
Hum or Buzz Through the Speakers
A steady low hum usually means the ground wire is disconnected or attached to the wrong terminal. Fasten it to the earth post on your phono stage or amplifier. If the hum remains, move the turntable further from the amplifier and any mains adaptor, and avoid running signal cables alongside power leads.
Harsh, Sibilant Highs
Exaggerated s sounds typically indicate cartridge misalignment or too little anti-skate. Re-run the protractor alignment and confirm the anti-skate setting matches your tracking force. A worn stylus produces the same symptom, so consider its hours if the setup checks out.
Mistakes People Make Most Often
- Skipping the level check because the furniture looks flat. Very few shelves are, and a small tilt affects every record you play.
- Rotating the whole counterweight when zeroing the dial, which destroys the balance point and produces a tracking force nothing like the number shown.
- Setting tracking force heavy “to stop skipping”. Excess force wears grooves and stylus alike; fix the underlying cause instead.
- Ignoring anti-skate entirely, which loads the inner groove wall and gives lopsided channel balance.
- Placing the deck on the same shelf as the speakers, creating an acoustic feedback loop that muddies everything.
Frequently Asked Questions
How exact does tracking force need to be?
Within about 0.1 grams of the cartridge’s recommendation is plenty. Aim for the middle of the stated range rather than either extreme, since that usually gives the best balance of tracking stability and low record wear.
Do I need a separate phono preamp?
Only if nothing else in your chain provides one. Many modern turntables include a switchable built-in stage, and plenty of powered speakers and amplifiers have a phono input. Using two phono stages at once will sound loud and distorted, so enable just one.
Can I balance the tonearm without a force gauge?
Yes. The counterweight dial is calibrated for exactly this and is accurate enough on a properly zeroed arm. A gauge simply confirms the reading and is worth buying if you change cartridges often.
Final Thoughts
Setting up a turntable rewards patience more than skill. Level the deck, align the cartridge, zero the arm properly before touching the tracking dial, and match anti-skate to downforce, and you will have a player that tracks cleanly, treats your records gently and reveals what the pressing actually holds. Work through the steps in order and check your work with a test side before settling in. Pair the result with speakers suited to vinyl playback, brush the stylus and records before each side, and revisit the balance whenever you change cartridge, belt or location. Do that and the deck you set up today will still be sounding right many years from now.
